Lexus CT200h Hybrid Battery (2011–2017), cells only, 28 pcs set

Description

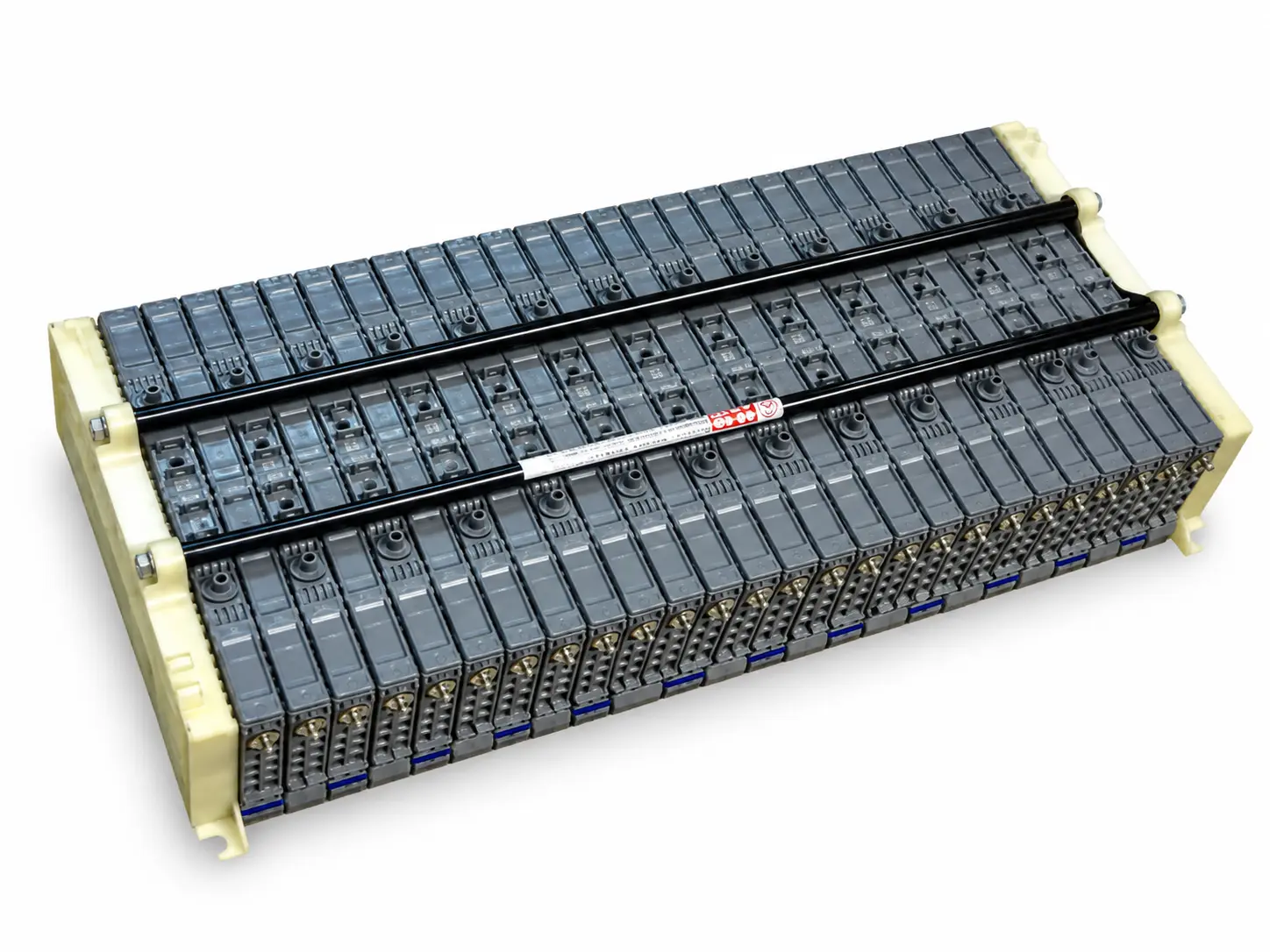

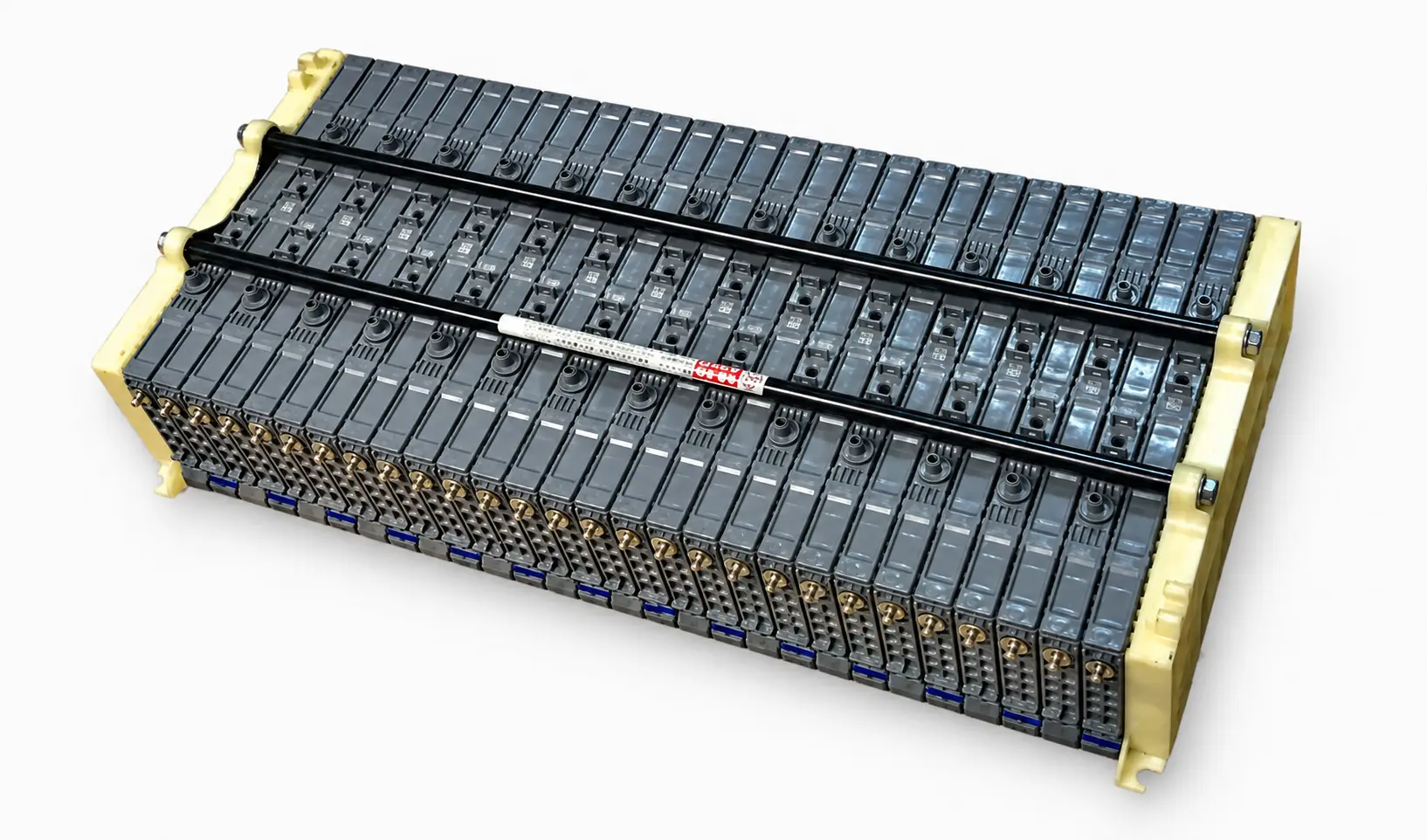

Lexus CT200h Hybrid Battery Cells (2011–2017) – 28-Piece Replacement Set

A weak hybrid battery can affect how your Lexus CT200h drives. For example, you may notice lower fuel economy, warning lights, or changes in battery charge. If testing shows worn battery modules, replacing the full set may cost less than buying a complete battery assembly. Our Lexus CT200h hybrid battery cells set contains 28 OEM nickel-metal hydride (NiMH) modules. We recondition, test, match, and balance the modules before shipping. As a result, the set offers a practical way to replace worn cells in a compatible traction battery. This kit is for the high-voltage hybrid battery in compatible 2011–2017 Lexus CT200h models. It does not replace the 12-volt auxiliary battery.

What Comes in the 28-Piece Battery Cells Set?

Each kit includes the following parts and services:

• 28 reconditioned OEM modules for a compatible hybrid battery pack.
• Matched battery modules that we group by their test results.
• 45-amp load testing to help us find weak modules.
• New bus bars and nuts for the battery connections.
• Warranty options with different module capacity levels.

Important: This kit includes modules and the listed connection parts. It does not include a complete battery assembly, housing, or control parts.

When Might Your Lexus CT200h Need Battery Modules?

The Lexus CT200h uses its hybrid battery to store power and support the electric motor. Over time, the modules can lose capacity. In addition, some modules may weaken faster than others. Common signs of a possible battery problem include:

• Lower fuel economy
• The gas engine running more often
• Hybrid system warning messages
• Unusual changes in the battery charge display
• Trouble codes linked to battery performance

However, these signs do not always mean the modules have failed. Problems with battery cooling, wiring, or other hybrid parts can cause similar symptoms. Therefore, have a qualified technician check the vehicle before ordering.

How We Test and Match the OEM Battery Modules

Two battery modules can show similar voltage but hold different amounts of energy. For this reason, a voltage check alone cannot tell you whether they will work well together. First, we inspect the modules and check their performance. Next, we run controlled charge and discharge cycles. We also use 45-amp load testing to help find weak modules. Finally, we match and balance the cells based on their results. This process helps reduce uneven performance within the set. Still, reconditioning does not turn an older module into a new one, and results can vary with age and use.

Choose Your Warranty and Battery Capacity

We offer four options, so you can compare coverage and module capacity before buying:

Warranty	Battery Cell Capacity
12-Month Warranty	4.0 Ah
2-Year Warranty	4.6 Ah
3-Year Warranty	5.2 Ah
4-Year Warranty	5.8 Ah

Capacity, measured in amp-hours (Ah), shows how much charge a module can hold under set test conditions. In general, a higher capacity means more stored energy. However, battery life also depends on heat, driving habits, and the condition of the rest of the pack. Select a warranty option above to view its current price and details.

Lexus CT200h Model Year Compatibility

We offer this 28-module set for the model years below, subject to a check of the car’s original battery setup:

• 2011 Lexus CT200h
• 2012 Lexus CT200h
• 2013 Lexus CT200h
• 2014 Lexus CT200h
• 2015 Lexus CT200h
• 2016 Lexus CT200h
• 2017 Lexus CT200h

Battery Modules or a Complete Hybrid Battery?

Both options can address a worn traction battery, but they include different parts and require different work.

Replacement Battery Modules

This kit provides 28 modules for the existing compatible battery assembly. A qualified technician must inspect the old housing and other parts, then install the replacement modules.

Complete Hybrid Battery Assembly

A complete assembly may include a built battery pack and more of the parts needed for the swap. Therefore, it may reduce the work involved in rebuilding the existing pack. However, the exact parts depend on the product. Module-only kits may cost less upfront, but they require more hands-on work. If you prefer a complete unit, explore our Lexus CT200h hybrid battery replacement options.

Installation and High-Voltage Safety

The Lexus CT200h traction battery contains dangerous high-voltage parts. As a result, improper handling can cause serious injury. We recommend a qualified hybrid technician for this job. Before fitting the new modules, the technician should inspect the case, cables, connections, cooling parts, and other hardware. In addition, the technician must follow the correct high-voltage safety steps. Shipped module-only orders do not include installation unless you arrange that service separately.

Shipping and Old Module Returns

Where We Ship

Hybrid Battery Service ships within the continental United States. Under the original kit terms, we do not ship to Alaska, Hawaii, APO/FPO addresses, or U.S. territories.

How the Core Return Works

Our core-return program includes a prepaid label for your old modules. After the new set arrives, follow the supplied packing and return steps. The original terms require you to send the old modules back within 10 calendar days of delivery. If you do not return the required modules, a $350 core charge applies under the original program terms. Please confirm the current terms and the parts you must send back before checkout.

Warranty and Support

Your selected product option sets the warranty period, from 12 months to 4 years. We also offer support for battery-related questions and warranty issues. In addition, the original module-set listing offers a 30-day money-back guarantee for non-working batteries, subject to its terms. Review the current coverage, return rules, and any limits before ordering.

Order Your Lexus CT200h Hybrid Battery Cells

If a technician confirms that your car needs a module-set replacement, this 28-piece kit may be a cost-saving choice. First, verify the battery fitment. Then choose your warranty option above and place your order with Hybrid Battery Service.
