How Hybrid Battery Service Revives and Reinvents Hybrid Car Batteries

You’re not alone if you think hybrid car batteries are a mystery wrapped in an enigma. Many drivers in Charlotte and across North Carolina assume that when their Toyota Prius, Lexus ES, or Chevrolet Tahoe and more Hybrid starts showing battery trouble, their only option is a costly replacement. But at Hybrid Battery Service, we have an alternative—one that not only saves money but also brings old hybrid batteries back to life through cutting-edge technology, painstaking precision, and, yes, a bit of engineering wizardry.

The Science of Hybrid Battery Life: Why Do They Fail?

Every hybrid car battery has a finite lifespan, but contrary to popular belief, they don’t just “die” overnight. Instead, they gradually lose capacity due to repeated charge and discharge cycles, much like how your smartphone battery struggles after a few years.

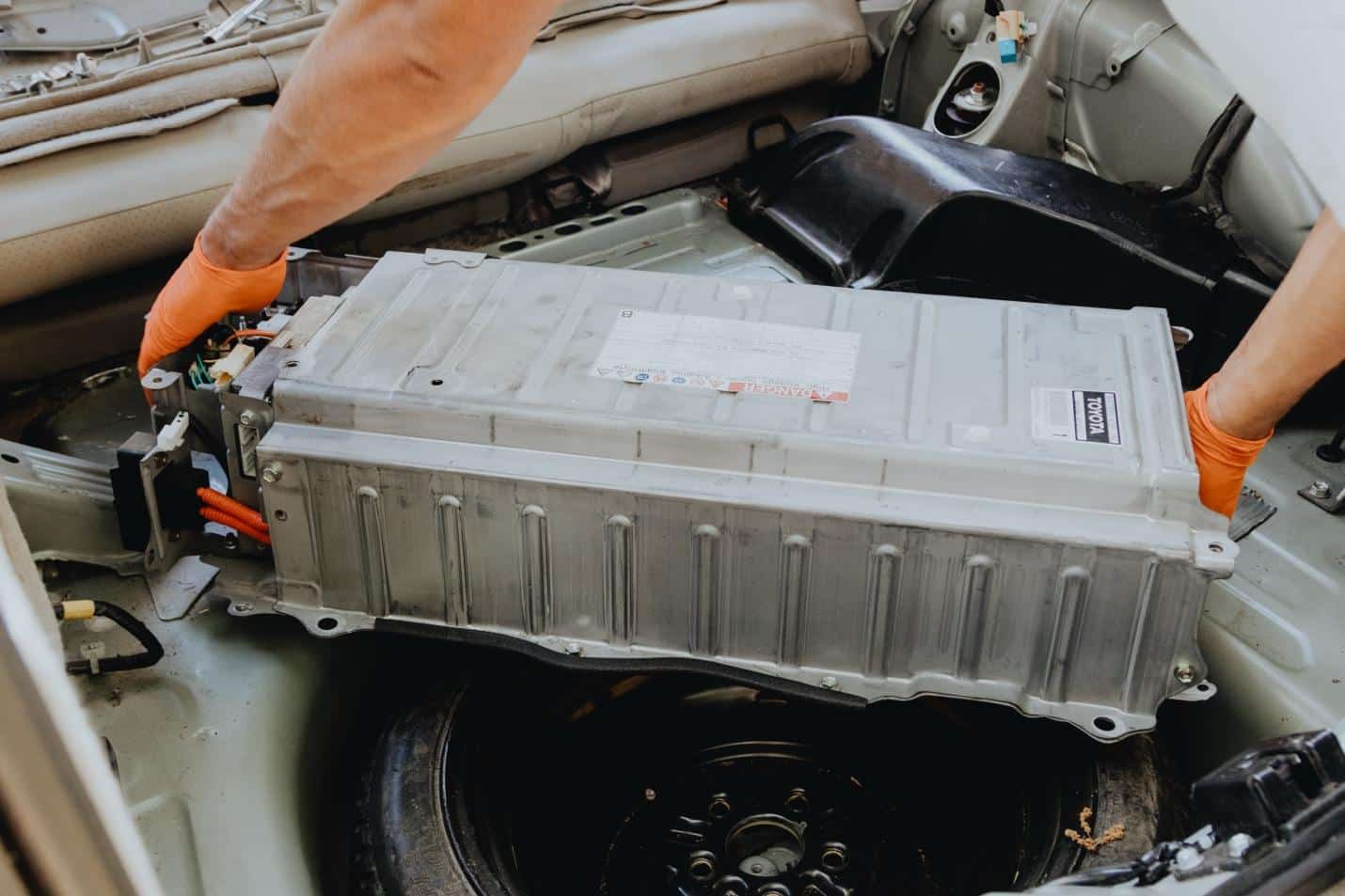

Take, for example, the Toyota Prius 2nd and 3rd-generation battery modules. When new, each cell has a nominal voltage of 7.2V and a capacity of 6.5Ah (amp-hours). In simple terms, if you draw one amp of power, the battery will last 6.5 hours before it needs recharging. But after years of use, chemical degradation sets in. Internal oxidation occurs, unseen electrical contacts corrode, and before you know it, your hybrid’s fuel efficiency plummets, and that dreaded battery warning light appears.

Busting the “Capacity Boost” Myth

Now, let’s address a common misconception head-on. Some companies out there claim to “increase” the capacity of your hybrid battery beyond what it originally had. That’s pure science fiction. Making a hybrid battery store more charge than the manufacturer designed it to hold is physically impossible. Unfortunately, the laws of chemistry and physics are not up for debate.

What Hybrid Battery Service does is something much more practical and reliable—we restore a degraded battery closer to its original capacity. For instance, if a battery has deteriorated to 3.5Ah, it’s barely functional in a vehicle. However, through advanced restoration techniques, we can often bring it back up to 4.5 or 5Ah, making it operational again. Some cells, however, are beyond saving and must be discarded—this is where real expertise comes in.

Step-by-Step: The Hybrid Battery Resurrection Process

Now, let’s dive deep into the six-step process we use to breathe new life into hybrid batteries. If you thought hybrid battery restoration was as simple as replacing a few cells, think again—our process takes an astonishing 30 hours per battery, making it the only truly reliable repair method on the planet.

Step 1: Sorting the Good from the Bad

We start by disassembling old hybrid battery packs and testing each cell. Cells with a voltage lower than 7V are almost always unsalvageable. However, there’s a surprising twist: A cell can still have a high voltage (e.g., 7.8V) but hold a miserable 2Ah capacity—meaning it’s functionally useless.

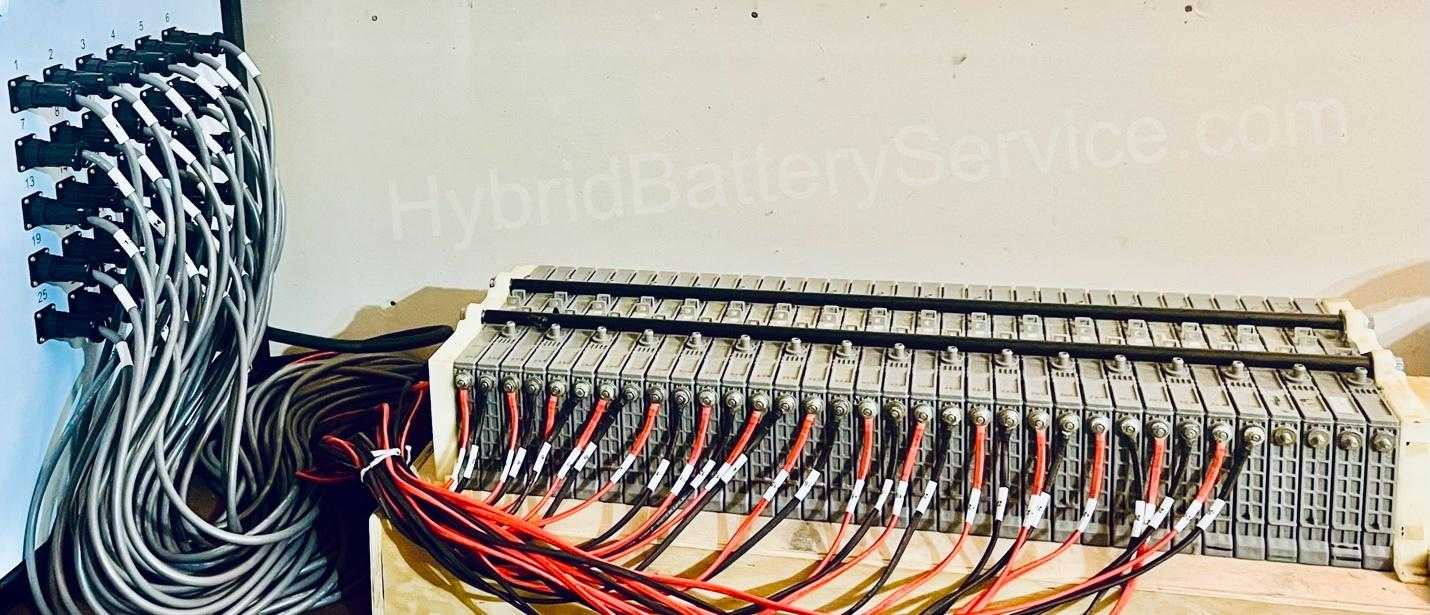

Step 2: The 22-Hour Deep Recovery Cycle

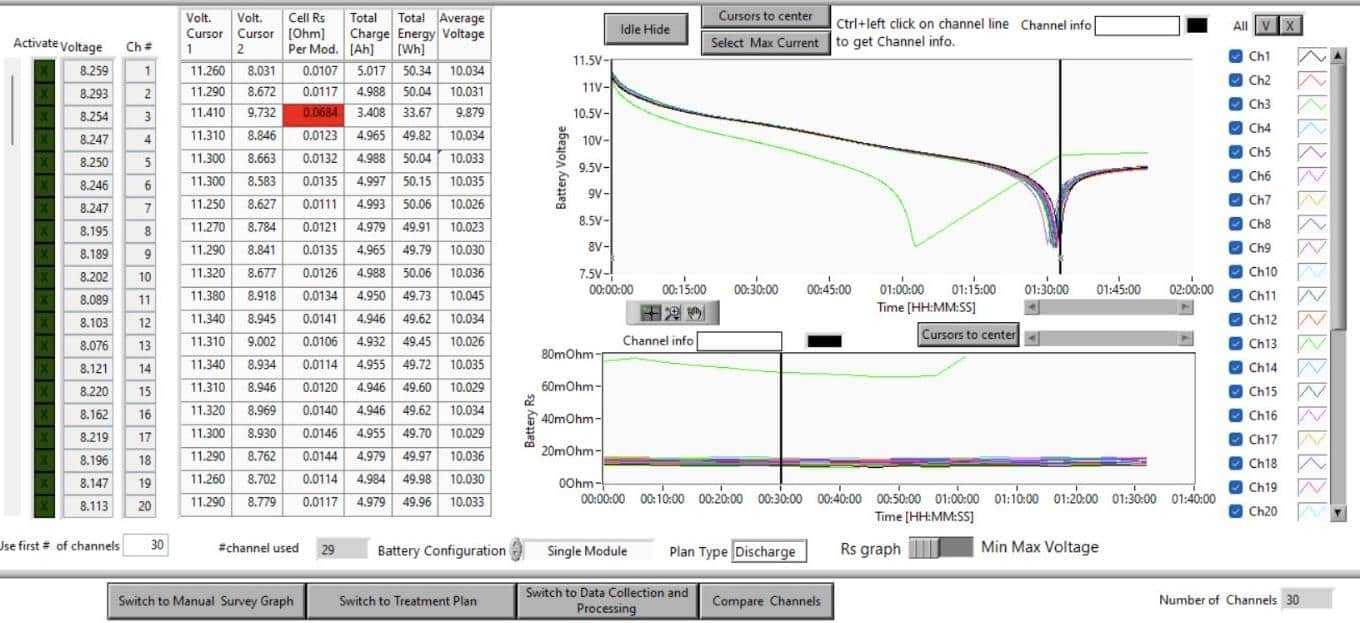

If a cell passes the first test, we put it through a grueling 22-hour recovery cycle. This involves:

12 cycles of discharge under varying loads
12 cycles of discharge under varying loads

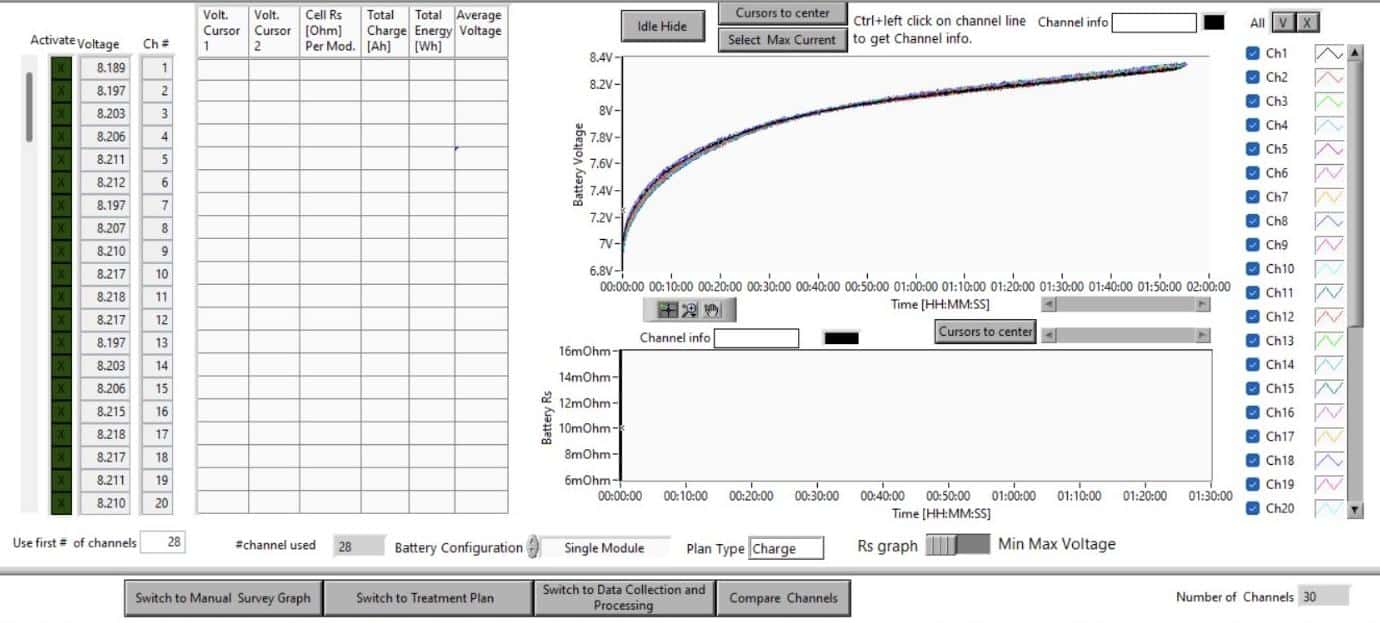

12 cycles of charge at different amp levels
12 cycles of charge at different amp levels
Memory effect
Memory effect

Why? Hybrid batteries suffer from what’s known as the “memory effect”—a phenomenon where batteries “forget” their full capacity due to years of shallow charging. Our specialized American-made restoration equipment systematically removes oxidation, reconditions the internal contacts, and restores usable capacity.

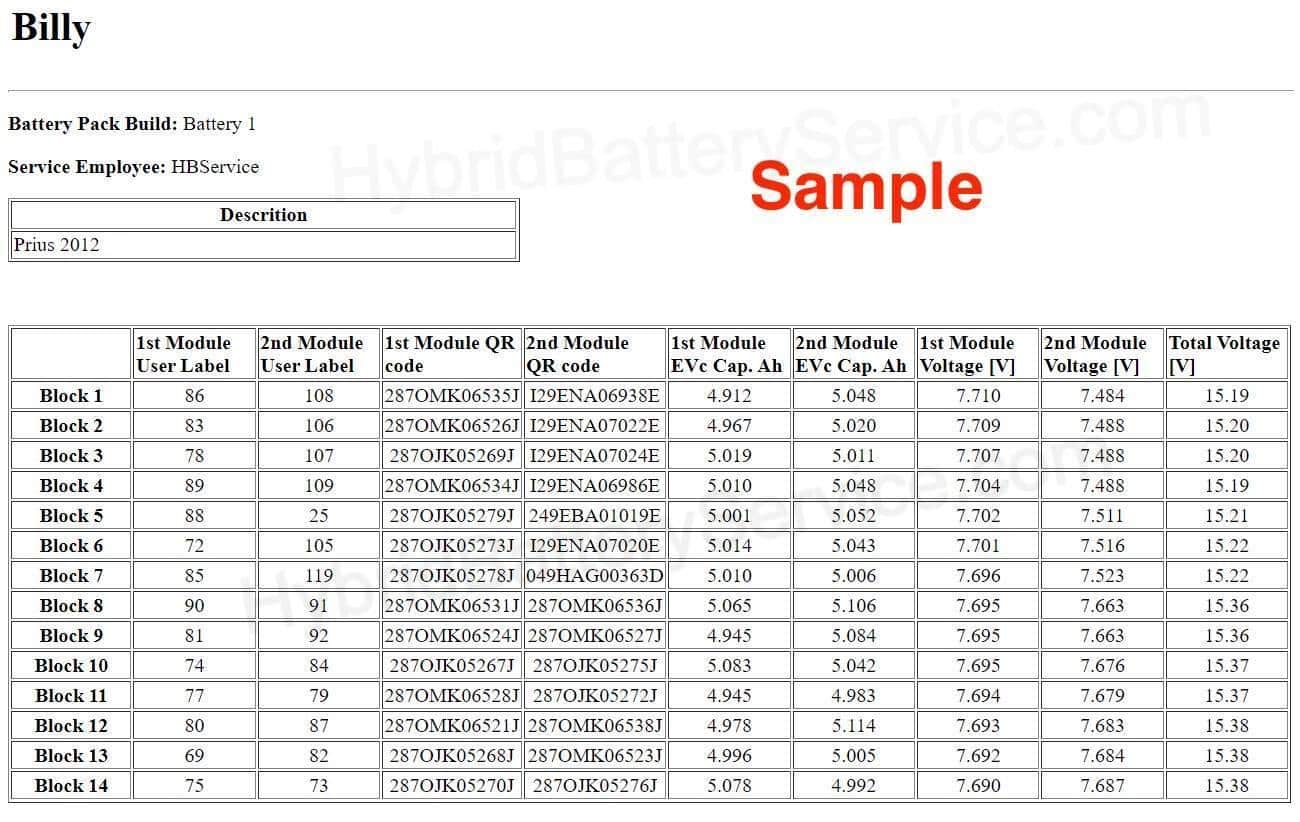

Step 3: Selecting Only the Strongest Cells

After this intense process, we face a harsh reality: 40% of battery cells fail and must be discarded. The survivors—those that have been revived to at least 4Ah or higher—are sorted by capacity.

Restores usable capacity
Restores usable capacity

At this stage, precision is everything. Imagine you’re assembling a team for a marathon. If one runner is significantly weaker than the others, the whole squad slows down. The same applies to hybrid batteries. We carefully all pair cells within a strict is no more 3-4% capacity difference to ensure smooth, even performance.

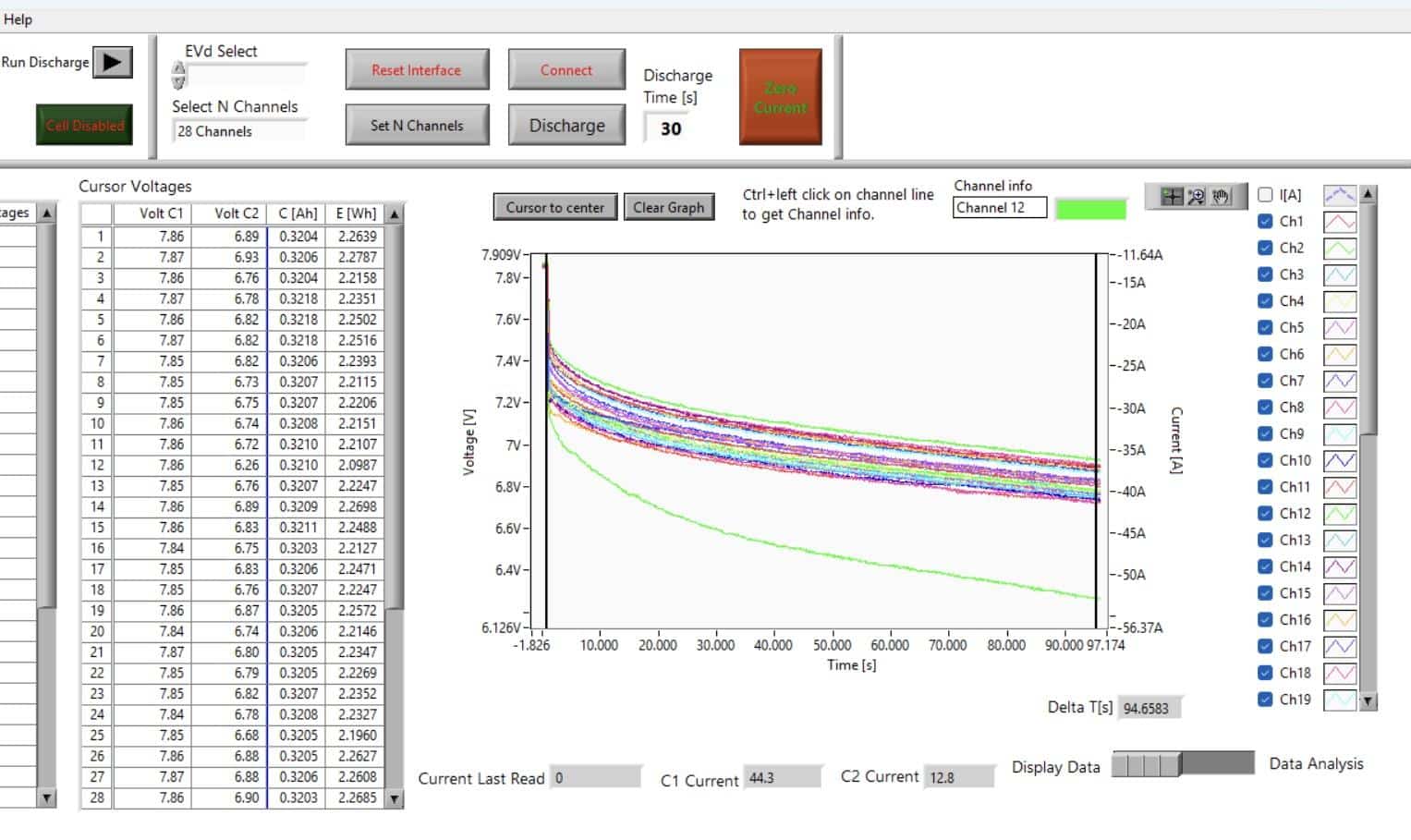

Step 4: Load Testing with 40 Amps

Load testing with 40 Amps
Load testing with 40 Amps

Once we have a well-matched pack of cells, we put them through a brutal 40-amp load test. This mimics a hybrid car’s heavy loads demands in real-world driving. If a cell fails under pressure, it’s immediately sent back to Step 2 for another round of reconditioning or is thrown out depending on the performance chart.

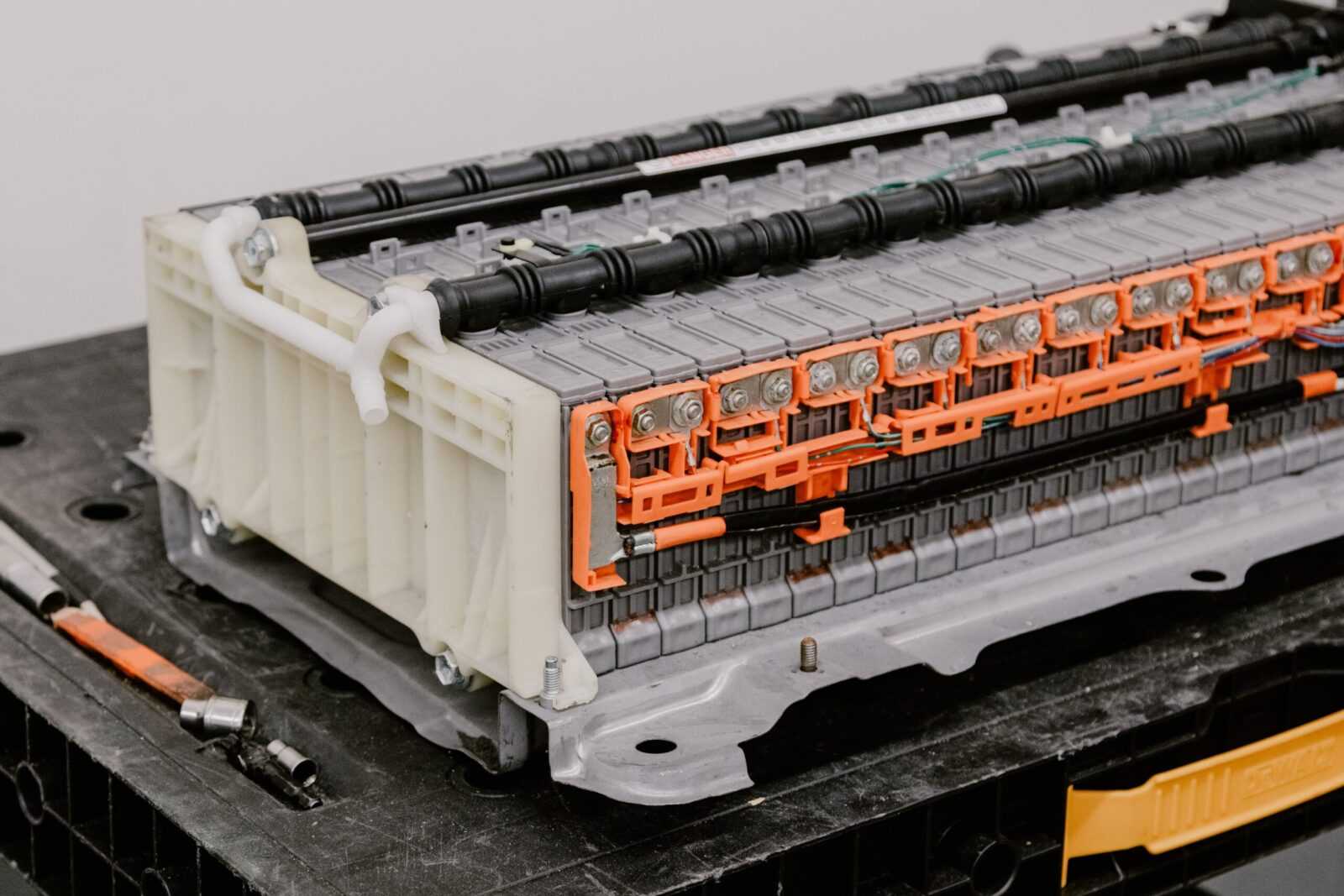

Step 5: Full Battery Pack Assembly

Full battery pack assembly
Full battery pack assembly

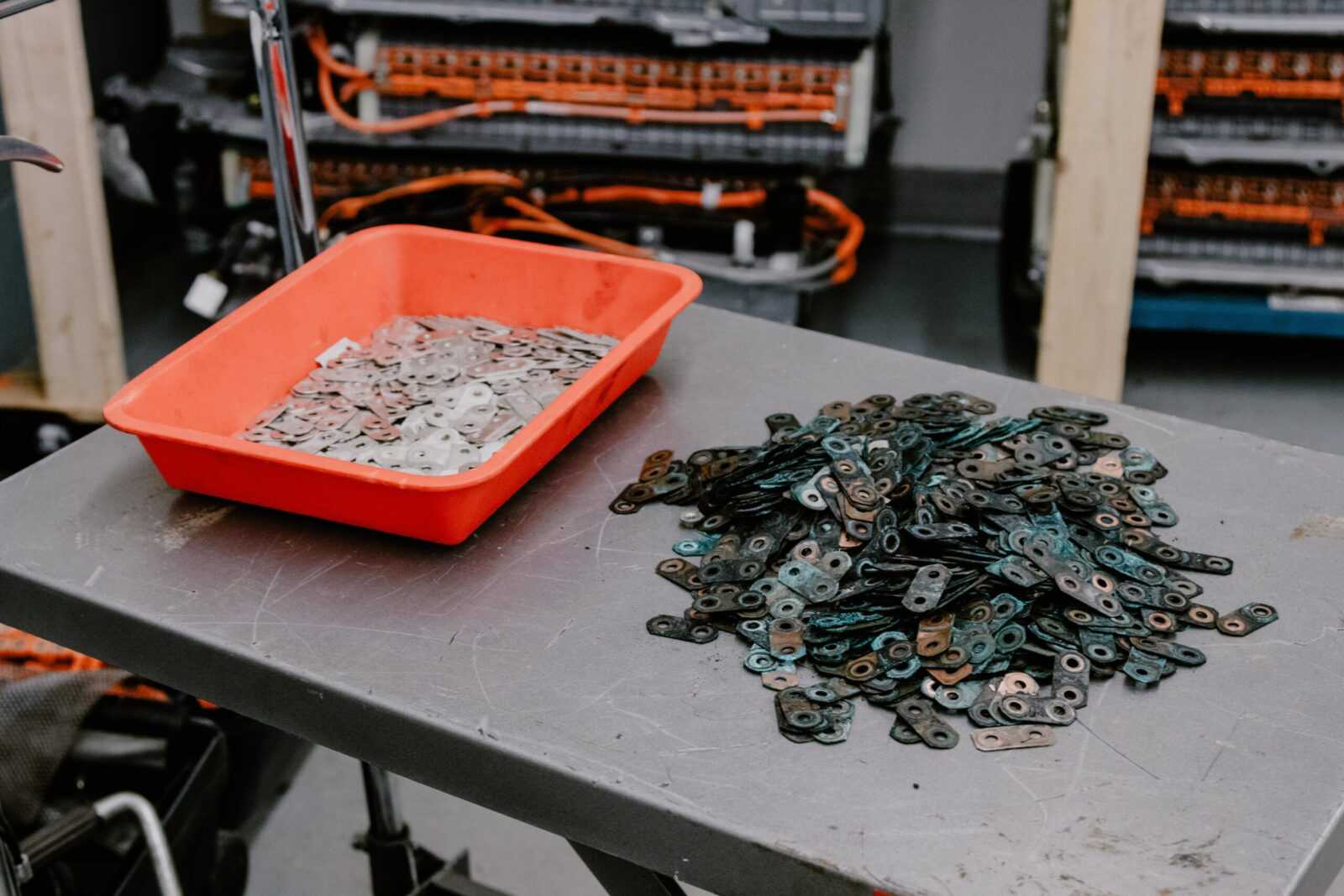

After the rigorous selection process, we finally assembled the hybrid battery pack using only new plates and fasteners to ensure reliability. This is a critical step—using old or corroded components would compromise the entire pack’s longevity.

Battery has 6500 mA/h
Battery has 6500 mA/h

Step 6: Real-World Testing in a Hybrid Vehicle

The final and most crucial test happens on the road. We install the newly restored battery into a test vehicle and drive it for about one hour, subjecting it to aggressive acceleration and hard braking to monitor real-time performance.

Real-world testing in a hybrid vehicle
Real-world testing in a hybrid vehicle

Using diagnostic software, we track the voltage and temperature of every single cell, ensuring no weak links remain.

If a cell underperforms? Back to Step 2.

Only when every indicator is green across the board do we give the battery an official warranty and prepare it for installation in a customer’s vehicle.

The Real Cost of Hybrid Battery Repairs

At this point, why not buy a brand-new hybrid battery instead of going through this painstaking restoration process?

The answer comes down to cost and sustainability. A brand-new OEM Toyota Prius battery can set you back anywhere from $3,900 to $4,300, not including installation fees. Meanwhile, a properly restored battery from Hybrid Battery Service costs significantly less and performs nearly as well as a new one.

Plus, by restoring hybrid batteries instead of discarding them, we’re reducing electronic waste, keeping hazardous materials out of landfills, and extending the lifespan of existing resources.

The Downsides: What You Need to Know

Let’s be real—not every hybrid battery is a good candidate for restoration. Severely damaged battery packs with multiple failed cells, corrosion beyond repair, or extreme wear might not be salvageable. Additionally, even a well-restored battery won’t last forever. Depending on the quality of the restored cells, you might get anywhere from 3 to 6 years of additional life before another repair or replacement is needed.

There’s also the issue of inconsistent DIY repairs. Many hybrid owners attempt to replace individual cells themselves, but this often leads to unbalanced packs that fail within months. Unlike a professional restoration that ensures uniformity, a patchwork repair can actually make things worse.
